CG10 Burner Manual

Section: Prepare the Burner for Start-up

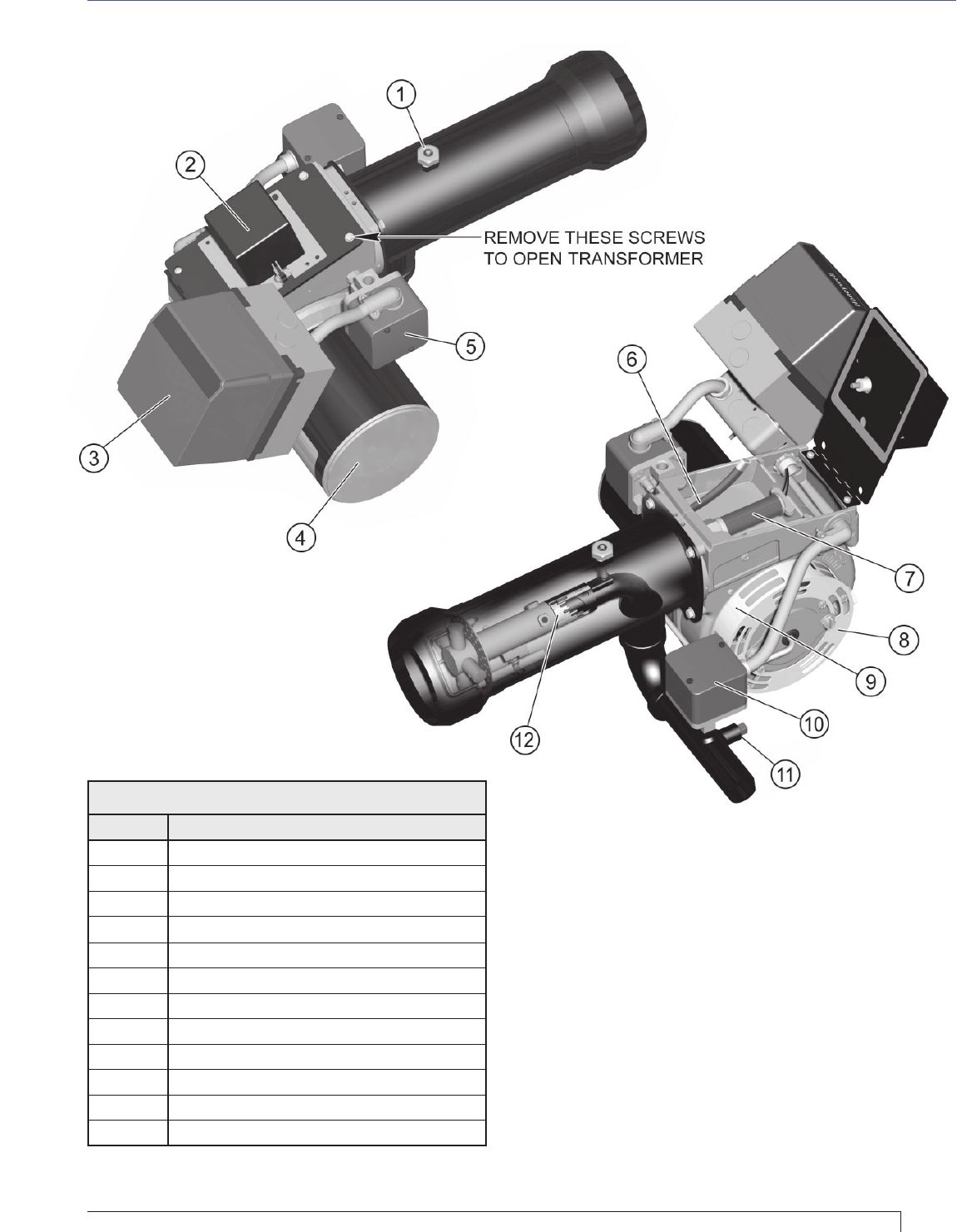

Figure 10. CG10 component familiarization

Major Components

Item Description

1 Jacking Screw

2 Ignition Transformer

3 Primary Control

4 Blower Motor

5 Air Flow Proving Switch

6 Electrode Cable*

7 UV Flame Detector (if used)

8 Shutter

9 Air Band

10 High Gas Pressure Switch

11 Manifold Pressure Test Connection

12 Gas Gun Assembly

*Unplug from transformer when servicing
